Eight-node brick element (C3D8 and F3D8)

The C3D8 element is a general purpose linear brick element, fully integrated (2x2x2 integration points). The shape functions can be found in [41]. The node numbering follows the convention of Figure 57 and the integration points are numbered according to Figure 58. This latter information is important since element variables printed with the *EL PRINT keyword are given in the integration points.

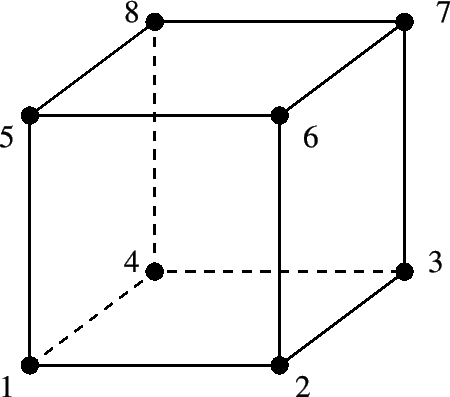

Figure 57: 8-node brick element

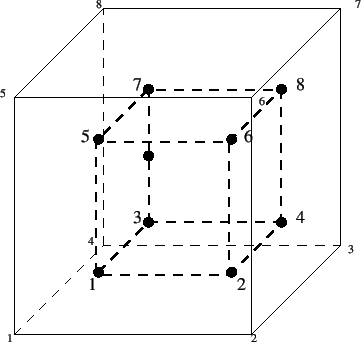

Figure 58: 2x2x2 integration point scheme in hexahedral elements

Although the structure of the element is straightforward, it should not be used in the following situations:

The F3D8 element is the corresponding fluid element.
