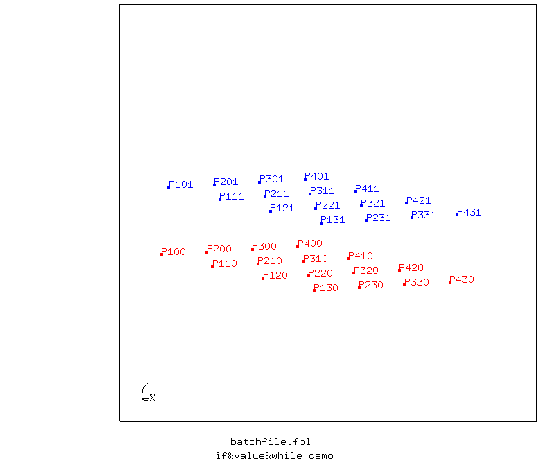

text if&value&while demo # def the leading letter of point names valu vp P # define the initial x value valu vx 0. # define parameters valu v2 4 valu v3 1 # start loop: while vx < v2 valu vy 0. valu vz 0. seto S1 while vy < v2 # define the pnt coordinates valu vy + vy v3 valu vy int vy valu vx int vx valu vz int vz # define the pnt name valu p1 & vp vy valu p1 & p1 vx valu p1 & p1 vz # generate the pnt pnt p1 vx vy vz endwhile setc valu vy 0. valu vz 1. seto S2 while vy < v2 valu vy + vy v3 valu vy int vy valu vx int vx valu vz int vz valu p2 & vp vy valu p2 & p2 vx valu p2 & p2 vz pnt p2 vx vy vz endwhile setc valu vx + vx v3 if vx == 1 plot pa S1 r else plus pa S2 b endif endwhile send all fbd # demo on how to write the content of variables to writedemo.txt valu vx int vx valu vy int vy sys echo VX: vx VY: vx VZ: vz >| writedemo.txt
