Line search

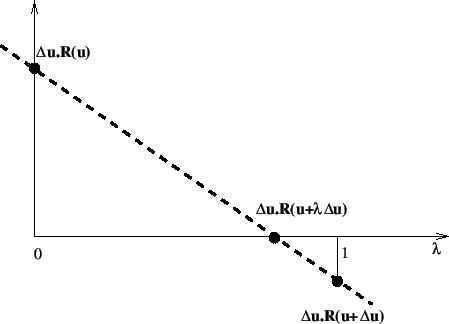

Figure 142: Principle of the line search method

In the case of static calculations with face-to-face penalty contact the displacement increment $ \Delta \boldsymbol{u}$ in each iteration is scaled with a scalar $ \lambda$ in order to get better convergence. $ \lambda$ is determined such that the residual (i.e. external force minus internal force) of the scaled solution $ \boldsymbol{u} + \lambda
\Delta \boldsymbol{u}$ is orthogonal to the displacement increment:

$\displaystyle \Delta \boldsymbol{u} \cdot \boldsymbol{R} (\boldsymbol{u}+ \lambda \Delta \boldsymbol{u}) = 0.$ (601)

Now, the residual for $ \lambda=0$ is known from the previous increment, and the residual for $ \lambda=1$ is known from the present increment. In between a linear relationship is assumed (cf. Figure 142), which yields the value of $ \lambda$ without extra calculations. With the *CONTROLS card the user can specify a value for $ \lambda_{\text{min}}$ (default: 0.25) and $ \lambda_{\text{max}}$(default: 1.01).
