corrad

   'corrad' <set>
This is a very special command to adjust improperly defined arc-lines, like in fillets. The center points of arc-lines included in the set are moved in a way that each arc-line will run tangentially into a connected straight line. But because the end-points of the arc-lines are not moved only one side of each arc-line will run into a connected line. The other side is not controlled and might end in a sharp corner. Therefore for each arc-line exactly one connected straight line must be included into the set (figure 4).

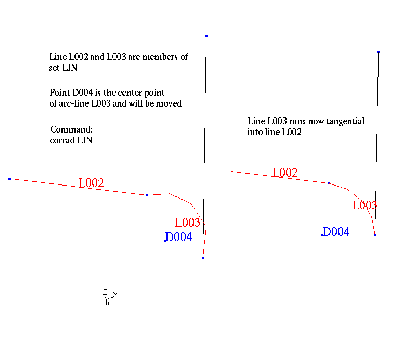

Figure 4: Effect of the corrad command
\begin{figure}\epsfig{file=corrad.eps,width=9cm}\end{figure}
